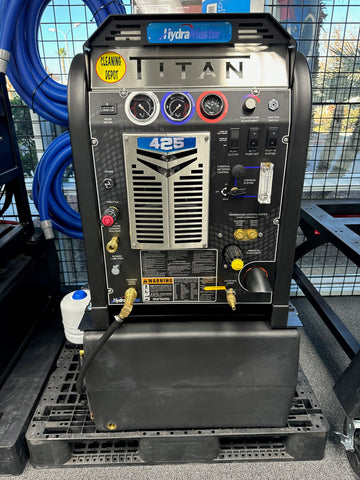

HydraMaster Titan 425 Truckmount Water Extractor 100 Gallon MaxxAir™ Recovery Tank

HydraMaster Titan 425 Truckmount Water Extractor 100 Gallon MaxxAir™ Recovery Tank * FREE SHIPPING TO COMMERCIAL ADDRESS ~~FINANCING AVAILABLE AS LOW AS $475/MONTH


Sold Out

Uncompromising Performance,
Incredible Cleaning Temperatures,
Maximize your Investment!



CALL US TO GET YOUR THE BEST PRICE!

Applications:
Residential and Commercial Carpet Cleaning
Pressure Washing with full waste recovery capabilities
Upholstery Cleaning
Concrete, Stone, Tile and Grout Cleaning
Water extraction

• “Tough as Nails” TITAN quality with a sleek new design
• More intuitive and easier to use panel directions and graphics make it easier to train new technicians and easier to maintain
• Enhanced appearance makes an impression on your professionalism to your cleaning or restoration customer
• Truckmounts that match your perseverance at delivering optimum performance to your customers
• Legendary performance and reliability from the
innovation leader since 1971

Description

A Ferocious Appetite for Clean and Dry

More Power – 23 HP Air Cooled Engine – Briggs & Stratton® Vanguard™ Air Cooled Engine.

Quieter Performance – Opti-Air® Flow System – Reduces noise resulting in the quietest machine in its class.

Patented Heat Control System – ADC Control Diverter valve manages heat for more consistent temperature delivery and far less water dumping.

Compact Footprint – Maximizes the van space more efficiently creating greater cubic feet for your gear.

Simpler Maintenance – “Arms-length” design and removable panels allow easy access to crucial components and serviceable parts, including the heat exchanger.

Stronger Vacuum – Helical gear splash lube tri-lobe blower produces 350+ CFM resulting in faster drying carpet and floors.


• Engine: 23 HP Briggs & Stratton® Vanguard™ Air Cooled
• 1.1 GPH Fuel Consumption
• Dependable 2 Cylinder OHV Design
• Fuel-Efficient Technology
• External Oil Cooler
• Operating at 3000 RPM
• Keyed ignition
• Engine choke and Throttle
• Nationwide Serviceability
• Vacuum: 4005 Dominator™ Tri-Lobe Blower, 350+ CFM
• Tuthill 4005 Tri-Lobe Blower
• HydraMaster Exclusive Design
• Direct Coupler Driven
• Pulsation and Sound Reduced
• No Grease Fittings
• Dual Oil Bath Design with
• Sight Level Windows
• Durable Helical Gear Drive
• Solution Pump: Plunger pump with 1000 operating PSI
• General HTX-1813 4.0 GPM solution pump
• Electric clutch-control
• Heating System: Thermal Capture and Heat Exchange System
• Divert tube and fin heat exchanger system
• 240°F Maximum Temperature



• Subcategory: Slide In
• Dimensions: 24″W x 32″H x 36″D
• Weight: 563 lbs (console only)
• Engine: 23 HP Briggs & Stratton® Vanguard™ Air Cooled
• Ignition: Keyed
• Max Temp: 240º F
• Chemical System: Last-step chemical injection, meter controlled
• Recovery Tank: 70 gallon MaxAir™ recovery tank; aluminum, baked-on powder coated finish, includes stainless steel filter and filter basket, 36 1/2″L x 10 1/2″W x 31″H, 100 lbs
• Solution Hose Length: 100 ft x 1/4″
• Vacuum Hose Length: 100 ft x 2″
• Wand Capacity: Single
• Fuel Consumption: 1.1 GPH
• Uses: Residential and Commercial



• Runtime hour meter
• Chemical flow meter (0-10 GPH)
• Chemical flow control valve
• 5 gallon chemical jug
• Vacuum gauge (0-30” Hg)
• Solution pressure gauge (0-1,000 PSI)
• Solution pressure adjustment
• Pre-wired pump-in switch
• Pre-wired APO Switch
• Fresh water inlet
• Water system drain valve
• Stainless steel carpet cleaning wand
• Diverter valve (with ADC heat control)
• Diverter/clutch package for flood work
• Electrical circuit protection
• Pump clutch switch
• Solution temperature control selector
• Two solution outlets
• Solution Hose Length: 100 ft x 1/4”
• Vacuum Hose Length: 100 ft x 2”
• Wand Whip Line: 10 ft x 1-1/2”
• 50 ft water supply line
• Recovery Tank: 70 gallon MaxxAir™
• Battery box
• Van installation kit
• Operation & maintenance manual
• Embroidered HydraMaster jacket
