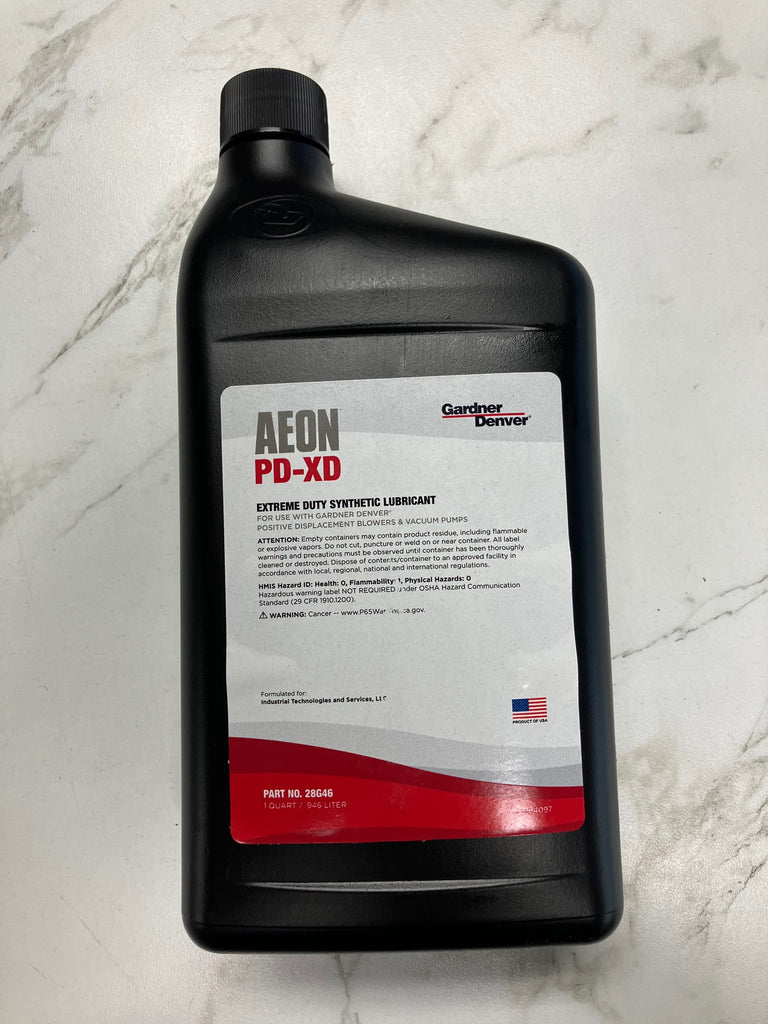

AEON PD-XD by the quart

• AEON PD-XD has the highest viscosity offered by Gardner Denver for Extreme Duty applications
• Designed specifically for high ambient and high discharge temperature conditions

• Longer service life
• Fewer oil changes and less replacement oil

• Less down time = higher productivity
• Reduced maintenance personnel and material costs
• Reduced oil disposal costs
• Better for the environment

Application

•  Positive Displacement blowers & vacuum pumps
• AEON PD Synthetic Lubricants provide maximum protection for demanding operating conditions in any environment or application

Description

• AEON PD Synthetic Lubricants are custom blended, synthetic hydrocarbon (polyalphaolefin) based oils
• AEON PD products are free of toxic materials or heavy metals per OSHA and EPA guidelines
• AEON PD is compatible with the majority of seal materials: teflon, viton, nitrile buna N, fluorocarbon, polysulfide, polyacrylic and fluorosilicone
• AEON PD-FG Food Grade complies with FDA 21 CFR 178.3570 requirements for lubricants with the possibility of incidental food contact
• AEON PD-FG is NSF approved

Usage & Performance

• Superior performance in a variety of application and temperatures
• Factory recommended for Gardner Denver Sutorbilt®, DuroFlow®, CycloBlower®,HeliFlow® and TriFlow® PD blowers and vacuum pumps
• Formulated for minimal blower wear and maximum equipment life
• Optimized viscosity provides superior lubrication in severe hot and cold temperatures with minimal energy consumption

Benefits

of Aeon PD vs. Mineral oil longer service life & improved Performance
• AEON PD typically lasts up to 4 times longer than mineral oils operating under the same conditions.   Severe operating conditions may warrant more frequent oil changes. Laboratory analysis of the oil should be used to help determine the optimum oil change interval.
• AEON PD Lubricants have a higher viscosity index
• AEON PD lubricates equipment more effectively and better maintains viscosity at high temperatures
• No need for seasonal oil changes (refer to Operating & Maintenance manuals for specific information)
• Mineral Oils have poor low temperature properties, resulting in increased wear during start-up, ultimately shortening equipment life
• Mineral oils have increased water content reducing bearing life exponentially

Advanced Chemistry

• AEON PD superior oil/water separation and corrosion inhibitors protect bearings and extend blower life significantly
• Rust and oxidation inhibitors, and anti-foam additives provides improved performance

Compatible Equipment

Factory recommended for Gardner Denver blower families including:

• Sutorbilt

• DuroFlow

• CycloBlower

• HeliFlow

• TriFlow

• RBS Series

Technical Data (AEON PD-XD)

• Viscosity @ 40°C: ~365 cSt
• Viscosity @ 100°C: ~39 cSt
• Flash Point: ~515°F
• Pour Point: ~-44°F

High viscosity design ensures protection in extreme duty environments.

Cross Reference / Part Numbers

• Gardner Denver 28G47 (12 Quart Case)
• Gardner Denver 28G46 (Quart Bottle)
• Sapphire Scientific 13-004 (quart equivalent)
• Prochem 8.618-909.0
• Legacy 05-008039
• Interlink 1618-2115
